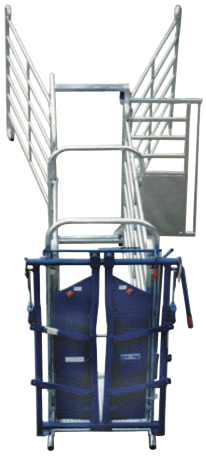

Small cattle working system – ideal for starting
Faster catching, free flow moving an secure working are possible with this system which is made out of four panels and part of the extensible TEXAS TRADING cattle working system.
You get a complete small cattle working system with Headgate, two side panels (one of them with a gate) and a sliding door, which provides the entrance. The other two panels can be used to build a crater, making it easier to move the cattle into the treatment unit (see picture). Alternatively there is always the option to build a useful pen out of four panels. The walk thru panel enables easy access into the box. |
|
1 AHG Headgate
1 HC Head Chain
1 HGS Headgate Stand
3 P10 Panel 3 m
1 WT10 Walk Thru Panel 3 m
1 AF Alley Frame
1 AAG Adjustable Alley Gate |
 |
|

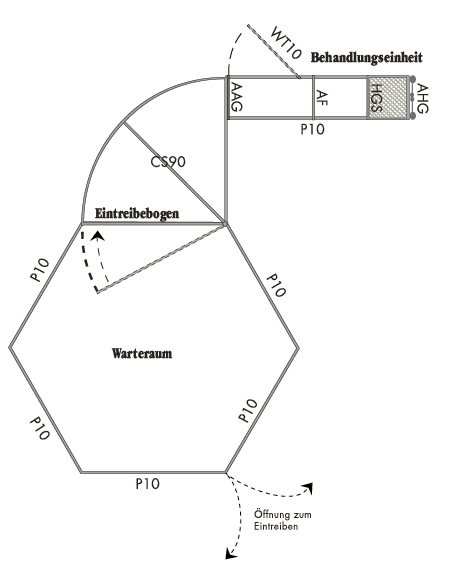

Cattle working system for medium sized herds
handles herds of up to about 15 head, includes: |
1 AHG Headgate
1 HGS Headgate Stand
1 WT10 Alley Walk Thru
1 AF Alley Frame
1 AAG Adjustable Alley Gate
1 CS90 90° Sweep
5 P10 Panels 3 m |
 |
|

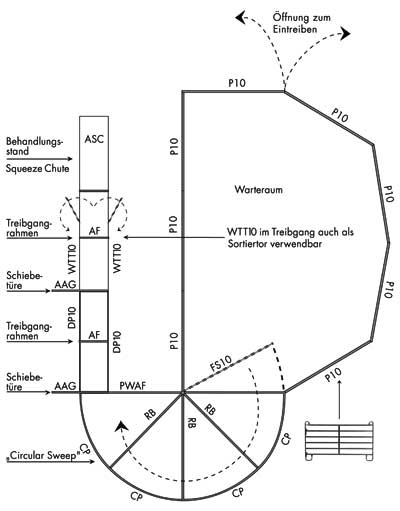

Cattle working system for big sized herds
handles herds of up to about 30 - 40 head, includes: |
1 SO4 Squeeze Chute
1 ATCH Set of Fittings
2 WTT10 Alley Walk Thru
2 AF Alley Frames
2 AAG Adjustable Alley Gates
2 DP10 Alley Panels
1 CS180 180° Sweep
8 P10 Panels 3 m |
 |
|
 |
AHG
Headgate
Overall height 175 cm
overall width 125 cm
(over lever)
Weight 99 kg |
|
 |
HC
Head Chain
For head fixation, very useful equipment for the Headgate.
Weight 1 kg |
|
|
HGS
Headgate stand
Solid steel tube construction with connection parts for the alley. Gives the Headgate a secure stand at every location. Stabilisation through the weight of the animal in the standing area.
Weight 4 kg. |
|
 |
RB06
Cattle treatment stand RB06
External lenght 250 cm
Iinternal length 218 cm
External width 130 cm
Internal width 80 cm
External hight 198 cm
Internal hight 171 cm
Weight 400 kg |
|
|
S04
Squeeze chute
Head chain HC included
L x W x H
Inner measurement 220 x 83,8 x 179 cm
Outer measurement 242 x 135 x 210 cm
Weight 550 kg |
|
 |
ATCH
Set of fittings
Four pieces, for direct linkage between alley and Squeeze Chute.
Weight 4 kg. |
|
 |
CA04
Caddy
Carriage for Squeeze Chute. Can be moved and placed in accurately with one person. For farm use only. |
|
 |
KORB
Catching basket
For Headgate AHG, hot dipped galvanised, complete steel construction for installation afterwards. Recommended for long horned cattle. Lockable for catching, swings open to the side. Suitable for all stands and alleys.
Weight 40 kg |
|
 |
AF
Alley frame
Made from sturdy steel tube, for 70 cm wide standard alley. Sturdy complete steel construction with fastening chains.
Weight 13 kg |
|
 |
AFWG
Alley frame with gate
Makes the end of an alley, if closed. Sturdy steel design with fastening chains.
Weight 31 kg |
|
 |
AAG
Adjustable alley gate
For fast and safe handling in alleys. Can be used as a divider between animals. The special design keeps the gate opened or closed without any locking bolt.
Sturdy, hot dipped galvanised, complete steel construction, noise insulated. Completed with fastening chains.
Weight 54 kg |
|
 |
AS
Alley stop
Steel tube construction, adjustable for all sizes of cattle with fastening chains.Weight 18 kg |
|
 |
DP10
Alley panel
Specially designed for alleys, where suckler cows with calves are treated. The lower rung area is calf proof, which avoids accidents in the alley.Length 300 cm, height 160 cm, weight 47 kg
Upper rung distance 21 cm, lower rung distance 12,5 cm |
|
 |
WTT10
Alley walk thru
Door locks the alley, if opened
Length 300 cm, height 210 cm, weight 71 kg |
|
 |
CP
Curved panel |
|
 |
RB
Radius bar |
|
|
FS10
Free swing bow gate
3 m wide and 2,10 m high with one handle, double-bolting locking system. Can be used as a big gate or as an important part in the handling facility of the circular sweep.Weight 102 kg
|
|
 |
FS109
Free swing bow gate
3 m wide and 2,70 m high with one handle, double-bolting locking system. Can be opened and closed while riding trough.
Weight 112 kg |
|
 |
CS90
90° Sweep
Suitable, where animals are moved out of a barn and the alley runs along the building. Consists of:
2 CP Curved Panels
1 RB Radius Bar
1 FS10 Swing Bow Gate
1 PWAF Panel With Alley Frame
Weight 222 kg, parts are also seperately available |
|
 |
CS180
180° Sweep
For secure moving of cattle into the alley. Consists of:
4 CP Curved Panels
3 RB Radius Bars
1 FS10 Swing Bow Gate
1 PWAF Panel With Alley Frame
Weight 306 kg, parts are also seperately available |
|
 |
P08
Panel
Length 240 cm, weight 34 kg, height 175 cm, rung spacing 21 cm |
|
 |
P10
Panel
Length 300 cm, weight 41 kg, height 175 cm, rung spacing 21 cm |
|
 |
P12
Panel
Length 360 cm, weight 51 kg, height 210 cm, rung spacing 21 cm |
|
 |
WT08
Walk thru
is 2,40 m wide and the telescopic bow up to 2,70 m high makes it possible to drive or ride through. With one handle, double-bolting locking system, to open and close from the horse. Solid steel-tube construction, removable arch for transport, inside and outside hot dipped galvanised.
Length 240 cm,
height 210 cm, weight 45 kg |
|
 |
WT10
Walk thru
similar to WT08
Length 300 cm,
height 210 cm,
weight 51 kg |
|
 |
WT12
Walk thru
similar to WT08
Length 360 cm,
height 210 cm, weight 59 kg |
|
