Treatment stands K08 and K12
for non halter trained animals
The K08 and K12 provide quality for the specialists of grazing cattle, suckler cows and large dairy herds. This walk through stand enables the user to work flexibly.
- The catching unit Headgate catches non trained animals manually or automatically.
- Movable front leg holders on the side allow for comfortable working height in the walk-through stand.
- Two winches on the back door enable the worker to use different working techniques. We recommend to raise the animals back legs in two steps. Firstly place the rope above the ankle (dutch method). This will allow for routine hoof pairing to be carried out. Using an angle grinder with a knife disk, an additional fixing of the hoof is essential with the lower winch.
- To prevent the animal from lying down, the treatment stand is fitted with a breast belt in the front and two padded chains at the back to protect the udder.
- All winches have a variable fast fixing system and allow for a slow release under pressure
Healthy animals are the basis for economical animal production. Hoof care accounts for one of the most important treatment measures. Traditional hoof pairing units, which are built for animals with daily human contact, are mostly unsuitable to catch shy cattle and dairy cows.
TEXAS TRADING as a specialist for outdoor animal equipment, has developed in cooperation with Mr. Rudolf Kästner (one of the most experienced hoof pairing specialist in eastern Germany) and the Rosensteiner company from Austria a walk-through stand for suckler cow farms and large dairy herds.
The K08 and K12 can be integrated into crushes. The foor is galvanised and perforated to allow dirt to flow through. Additionally there is an integrated platform weighing scale available. Both side parts are closed, but can be opened in order to work on the tied animal. A safety belt secures the animal by the breast bone and two padded chains support the back legs without pressure to the stomach and udder. The catching device is painted and the stand completely hot dipped galvanised. Additionally there is a removable three point linkage for transport. |
|
|
K08
Treatment stand K08
Outer length 225 cm
Outer width 140 cm, inner width 70 cm
Outer hight 195 cm
Middle walk thru height
157,5 cm
Platform measures 200 x 70 cm
Weight 440 kg |
|
|
K12
Treatment stand K12
Outer length 225 cm
Outer width 145 cm, inner width 70 cm
Outer hight 195 cm
Middle walk thru height
157,5 cm
Platform measures 200 x 70 cm
Weight 455 kg |
|
|
SNTP-3
Three-point linkage
for transport |
|
|

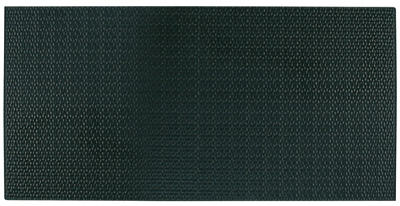

SNTP-M
Rubber mat for K08 and K12
Smooth standing for cattle with claw problems.
Weight 15 kg. |
|
|
13650
Electric back leg lift
For the professional hoof pairer. It is placed on the frame as a complete unit.
The standard hand winds are fully workable. Consists of lifting belt and loop to put above the angle of the back leg, switch for up and down, two sockets, holder for angle grinder and swinging cable arm. |
|
|
SNTP-R
Wheels
The axle with wheels enables just one person to move the K08 and K12 on level ground. The stands are lifted by the front leg winds, which are forcing the wheels into driving position. |
|
|
KP6
Hoof pairing panel
For building a tapering entrance to the hoof pairing stand.
Length 180 cm, height 160 cm, weight 28 kg
Suitable for transport in the stand or on the top of the tipping table.
|
|
|
SNTPFH
Holder for angle grinder
For mounting onto the K08 and K12. A safe place for the angle grinder with good access. |
|
|
