 Frost proof comfort troughs from
NELSON - series 730
- Fresh water supply all year round
- Automatic water filling, without activating a valve by an animal
- Water level and filling speed are individually adjustable for each animal.
- Clean water due to fine water filter
- There is no need to shut off a main
water valve, if cleaning the bowl,
due to the intergraded closing valve
- High quality manufacturing of corrosive free materials like stainless steel, aluminium, brass and construction substance
- Removable stainless steel drinking bowl allows hygienic cleaning.
Disinfection is possible for the use in animal hospitals and zoos
- The electric low voltage heating with 24 V offers optimised safety standard
due to VDE for your animals. Please list suitable transformer TR200 on your order.
- 200 Watt heating power warranted
- DLG proven water supply down to – 30 degree Celsius
- Low energy use due to thermostat control. Heats only, if needed
- Can be used for horses and zoo animals
- DLG-test report Nr. 5159
|
|
Function
There is a weighing bar built in the trough. The drinking bowl sits on one site,
on the other the weight. If water is taken out of the bowl, the bowl will get lighter, the weighing bar lifts and opens the valve. Water fills the bowl, until the normal level is reached.
|
|
 |
730-WH
Wall mounted model with aluminium housing
Model for wall mounting with a flattened backside.
Supplies water for 12 horses or 25 cattle. Water and electric supply from underneath. Building height 28 cm, 33 cm diameter.
24 Volt, 200 Watt.
Please list Transformer TR200 in your order. |
|
 |
730-CAH
Corner wall mounted model with aluminium housing
Drinking bowl with rounded housing for mounting in a corner. Supplies water for 12 horses or 25 cattle. Water and electric supply from underneath. Building height 28 cm, 33 cm diameter.
24 Volt, 200 Watt. Please list Transformer TR200 in your order. |
|
 |
730-AH
Model for mounting on a concrete pipe with aluminium housing
With round housing for mounting on a free-standing concrete pipe (30 cm inner diameter). Supplies water for 12 horses or 25 cattle. Water and electric supply from underneath. Building height 28 cm, 33 cm diameter.
24 Volt, 200 Watt. Please list Transformer TR200 in your order.
Standard version with aluminium housing. |
|
 |
730-24
Free standing model with aluminium housing
Similar to 730-10AH, but with longer building height of 64 cm, due to its design
as a standing model. Water and electric supply from underneath. Thermostat controlled heating 24 Volt, 200 Watt.
Please list Transformer TR200 in your order. |
|
 |
730WSH
Wall mounted model with stainless steel housing
Model for wall mounting with a flattened backside
Feeds 12 horses or 25 cattle. Water and electric supply from underneath.
Building height 28 cm, 33 cm diameter. 24 Volt, 200 Watt.
Please list Transformer TR200 in your order.
|
|
|
730CSH
Corner wall mounted model with stainless steel housing
Drinking bowl with rounded housing for mounding in a corner. Supplies water
for 12 horses or 25 cattle. Water and electric supply from underneath.
Building height 28 cm, 33 cm diameter.
24 Volt, 200 Watt. Please list Transformer TR200 in your order. |
|
 |

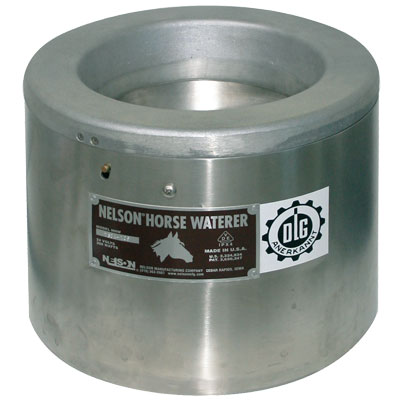

730-SH
Model for mounting on a concrete pipe with stainless steel housing
With round housing for mounting on a free-standing
concrete pipe (30 cm inner diameter). Supplies water for 12 horses or 25 cattle. Water and electric supply from underneath. Building height 28 cm, 33 cm diameter. 24 Volt, 200 Watt. Please list Transformer TR200 in your order. |
|
 |
730-S24
Standing model with stainless steel housing
Similar to 730-10SH, but with longer building height of 64 cm, due to its design
as a standing model. Water and electric supply from underneath. Thermostat controlled heating 24 Volt, 200 Watt.
Please list Transformer TR200 in your order. |
|
 |
S344
Thermo pipe with insulation
For the easy mounting of NELSON drinking bowls,models 300-8AH, 730-10AH
and 730-10SH. The thermo pipe is made from polyethylene with insulation.
Length 400 mm.
Price excluding NELSON drinking bowl. |
|
 |
TR200
Transformer
For NELSON drinking bowls.
Power inlet 230 V, outgoing 24 V, 200 W
Hight 14 cm, width 13,4 cm, depth 8,7 cm, weight 4 kg |
|
 |
TR400
Transformer
For NELSON drinking bowls series 760.
Power inlet 230 V, outgoing 24 V, 400 W
Hight 17,5 cm, width 17,2 cm, depth 11 cm, weight 7,7 kg |
|
 |
1004
Water line insulation for NELSON drinking bowls
For the water supply. Special water-repellent design from refrigeration technology. Insulates also when wet, due to closed porous foam.
Ideal for the supply pipe direct under the bowl.
Inner diameter 42 mm, wall thickness 19 mm. |
|
